Straight key from U.S.A.












TELEGRAPH LEWIS KEY, second model - 1876



TK.US.001





Charles "Charlie" Lewis era un caposquadra nel negozio di Western Electric Chicago, ha brevettato molte chiavi telegrafiche per la Western union.

Sulla chiave vi sono stampate sul braccio le date di brevetto Lewis.

La chiave sotto rappresenta il secondo modello Lewis prodotto nonostante riporta stampato sul braccio due date di brevetto.

Lewis in totale presentò ed ottenne tre brevetti anche se le chiavi prodotte hanno delle piccole differenze tra il brevetto realizzazione e brevetto.

Come vedete dal disegno di brevetto il braccio risulta dritto, mente la chiave presenta una leggera curvatura verso il basso nella parte dell'operatore.



First Lewis patent 1876
First Lewis patent 1876



Charles "Charlie" Lewis was a foreman in the Western Electric Chicago shop and patented for it some keys and improvement for the telegraph key.

On the top of main key arm do you see write the Lewis patent dates.

The key under  is in the second model produced in according to Lewis patent. It have write on two patents date..

Lewis present and obtained in total  three patents, although the keys produced are more than 3 model and any sall differences between the patent is possible to have.

As you see the patent design above, the arm is straight, but the key under presents a slight diffrent with bend down in the operator side.



30 Nov. 2016





Lewis key, late model produced for Western Union Company
Lewis key, late model produced for Western Union Company
Lewis key, late model produced for Western Union Company
Lewis key, late model produced for Western Union Company
Lewis key, late model produced for Western Union Company
Lewis key, late model produced for Western Union Company
Lewis key, late model produced for Western Union Company
Lewis key, late model produced for Western Union Company
Lewis key, late model produced. Particular of pivot
Lewis key, late model produced. Particular of pivot
Lewis key, late model produced. Write on Arm Western Union Co.
Lewis key, late model produced. Write on Arm Western Union Co.
Lewis key, late model produced. Particular of S/N and Company name W.E. M.f.G. Co. from Chicago
Lewis key, late model produced. Particular of S/N and Company name W.E. M.f.G. Co. from Chicago
Lewis key, late model produced. Particluar of two patent's write on main arm.
Lewis key, late model produced. Particluar of two patent's write on main arm.
Lewis key, late model produced. Particular of close lever system
Lewis key, late model produced. Particular of close lever system
Lewis key, late model produced. Contact underbase
Lewis key, late model produced. Contact underbase





TELEGRAPH KEY  J.H. BUNNELL  model Triumph with leg - 1880

TK.US.002



 Questo tipo di tasto è stato prodotto dal 1880 a settembre 1906. La scritta sulla leva principale riporta i dati di brevetto "Brevettato 15 Feb 1881."

Il tasto era stato semplificato nella produzione del braccio, unico pezzo in acciaio, richiedeva una minore lavorazione.

Questa chiave fu la risposta di Bunnell al noto problema dell’ allentamento del trunion di acciaio inserito nelle leva ottone e nella diminuzione dei costi di produzione.

Il successo del la leva d'acciaio continua ancora oggi in questo tipo di chiavi.

I primi tasti Triumph portano la data di brevetto impressa sulla leva principale, dopo il 1906 la Bunnell cambia inserendo un logo rettangolare contenente al suo interno le lettere Bunnell seguito da una lettera S, poi gli utilimi tasti prodotti perderanno ogni scritta sul braccio, cosi scompariranno anche le gambe utilizzate per fissare inizialmente il tasto al tavolo di lavoro, sostituite da due fori praticati sulla base, sarannoi i cosidetti tasti "leg less" senza gambe, per fissare questo tipo di tasto, l'operatore poteva inserire due viti nei fori.







This kind of key was product from 1880 to September 1906, the inscription on the main lever reports the patent data "Patented Feb. 15, 1881."

The key has been simplified in the arm production, single-piece of steel, requiring minor processing.
This was the response of Bunnell to the well known problem of 'loosening of steel trunion into brass main lever, this had the decrease of production costs for Bunnell Co.
The Success of the steel lever continues still today in this type of keys. The first Triumph key have the patent data imprinted on the main lever, after 1906 Bunnell changes by write into a rectangular logo his letters Bunnell followed by a S letter, then last keys produced lose all writ on it arm, so disappear also the legs used to secure the key on the work table. Leg was replaced by two holes drilled on basis, it  so-called "leg less" keys, fix on the work table by operator that insert two screws trought this holes .



30 Nov. 2016

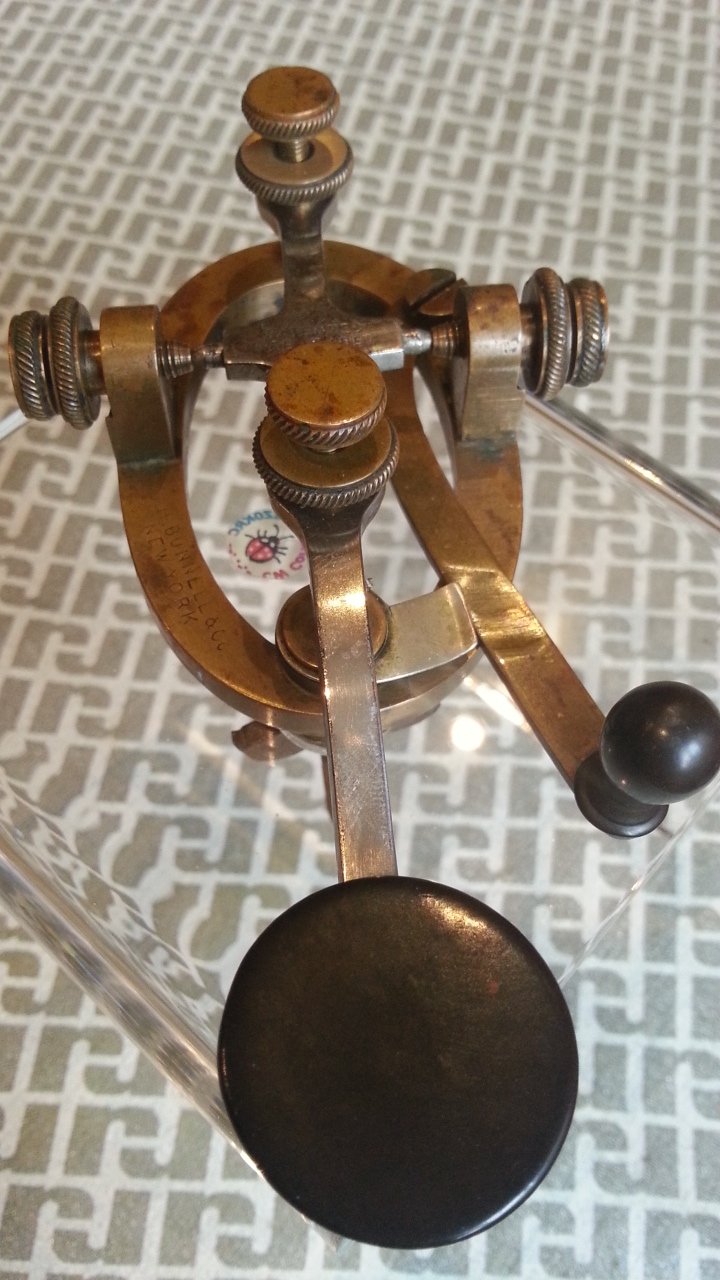

Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key. Patent on arm
Bunnell Triumph leg key. Patent on arm
Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key
Bunnell Triumph leg key. Particular of unusual spring arm
Bunnell Triumph leg key. Particular of unusual spring arm







STEINER TELEGRAPH KEY, second model - 1886

TK.US.003



Questa chiave è stata progettata e brevettata da Josef Steiner nel 1886 per conto della Western Electric Co.

Questa chiave ha un design unico senza frame e fulcro, utilizza una semplice molla piatta che funge da richiamo per la leva.

Se osservate bene le foto seguenti, potrete comprendere come avviene la regolazione della durezza del braccio, la molla piatta del braccio principale, nella parte frontale (quella che si ancora alla chiave) ha nel mezzo una vite, più si serra la vite è più il braccio diventa rigido e viceversa.

La regolazione della corsa avviene con la vite più vicina all'operatore, mentre le due viti laterali sono i terminali.

La chiave è completata con la leva di bloccaggio classica del circuito, la manopola della leva e il pomello della leva principale sono in Ebanite, in quanto la bakelite non era ancora stata inventata.

Questo modello non presenta un brevetto depositato, ma utilizza lo stesso brevetto della chiave che lo precede (il primo Steiner - 1884), semplificata rispetto a questo modello, mancante dei due terminali laterali.



Una piccola chiave, per questo ben costruita nei minimi dettagli, appena arrivata l'ho subito ripulita e lucidata proprio per apprezzare questo piccolo gioiello.





06  Maggio 2017













First Steiner key Patent - 1886
First Steiner key Patent - 1886





4) STEINER TELEGRAPH KEY, second model - 1886



This leg less key was designed by Josef Steiner in 1886 on behalf of Western Electric Co.

This key has a unique design, the main lever is without frame and fulcrum, to move it Stainer using a simple flat spring.

If you look closely at the following pictures, you can understand how the bracket's hardness and adjusted, the flat spring of the main arm, in the front part (the one still holding on the key) has a screw in the middle, If turn this screw In hourary sense it gives becomes rigid the main arm, if you turn in opposite have vice versa.

The stroke adjustment takes place with the screw closest to the operator, while the two lateral screws are the terminals.

The key is completed with the classic locking lever of the circuit, the knob of the lever and the main lever are in Ebanite (hard rubber), as the bakelite was not yet invented.

This model does not have a patent filed, but uses the same patent of the key that precedes it (the first Steiner - 1884), simplified respect for this model (missing two terminals at the side).



A very small key and for this reason well-built in the smallest details, just arrived I just cleaned and polished to appreciate this soon little jewell.



06 May 2017





Steiner keySteiner leg less morse key - 1886
Steiner keyStainer leg less morse key - 1886
Steiner keyStainer leg less morse key, patent
Steiner keySteiner leg less morse key - 1886
Steiner keyStainer leg less morse key - 1886
Steiner keyStainer leg less key, particular of lever closed
Steiner keyStainer leg less key, particular of underbase









Coming soon



STEINER TELEGRAPH KEY, inverted contact

TK.US.004



Questa chiave è stata progettata e brevettata da Josef Steiner .....
















A.B. LYMAN STEEL LEVER KEY , 1876 - 1880.

TK.US.005





Questa particolare chiave è stata costruita da A.B. Lyman nella città di Cleveland, Ohio.

Questo modello è denominato Steel Lever key, per via del suo particolare sistema dal design unico, brevettato da Lyman con il disegno della leva principale ancorata ad un unico pezzo di acciaio armonico a forma di "Y".
Il tasto ha una costruzione molto simili alle chiavi costruite da Steiner (vedi il tasto precedente), ne differisce perché la chiave Lyman ha sotto la leva principale una molla elicoidale regolabile che da all'operatore la possibilità di variare la forza di contrasto.



Questa chiave è stata venduta ad un prezzo "popolare" di 1,25 dollari con base a finitura "Giapponese", mentre la versione nichelata costava solo 2 dollari.

La pubblicità scriveva per consolidare l'affidabilità del tasto "garantisco piena soddisfazione o il rimborso".

Sotto ho dedicato alcune foto per mostrare i disegni della finitura giapponese,  eseguita con disegni ricchi curati quanto ricchi di fantasia, talmente aggraziati che li considero dei veri e propri disegni artistici.





This particular key was made by A.B. Lyman of Cleveland, Ohio.

This model is called the Steel Lever Key with unique Lyman patent design with the lever suspended by a "Y" shaped piece of spring steel. It has a  construction among telegraph keys very similar to the Steiner key systems (see key before), but differs because the Lyman has more a regulable elicoidal spring under the main lever, to regulate it force



This key saled at a very low price of $ 1.25 for japaned base, and $ 2 for nickel plate base. The Advertised write "I guarantee full satisfaction or money back".

I've devoted myself to the follow photos some "shoots" to show the Japanese finishing designs, very well done, I was really fascinated and considered them as real art designs.



 26 June 2017



A.B. LymanA.B. Lyamn Steel Lever key
A.B. LymanA.B. Lyman Steel Lever Key
A.B. LymanA.B. Lyman Steel Lever key
A.B. LymanA.B. Lyman Stell lever key
A.B. LymanA.B. Lyman key, particular of Closed lever write
A.B. LymanA.B. Lyman key, particular of contact
A.B. LymanA.B.Lyman key, particular of japaned design on base
A.B. LymanA.B.Lyman, particular of underbase contact

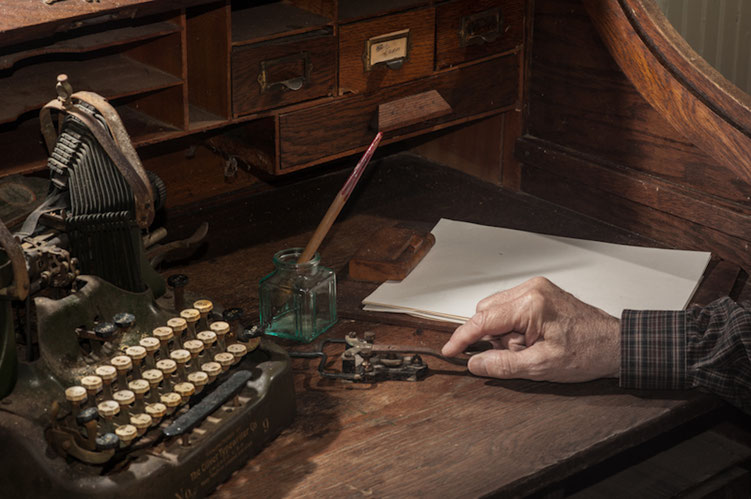

Image of A.B. Lyman morse key, from Fryburg telegraph office into Randholph Museum (OH)
Image of A.B. Lyman morse key, from Fryburg telegraph office into Randholph Museum (OH)





L.G. Tilotson. Arch camelback key - 1860 c.a.

TK.US.006



Questo particolare camelback key merita l'appellativo "Arch", per via dell'innovativo frame a forma di arco,  presenta inoltre una base in ebanite (hard ruber), tra le prime utilizzate in telegrafia per questo tipo di tasti.

Un tasto gemello a questo è stato prodotto, sempre nello stesso periodo, dalla società Partrick & Carter, probabilmente per via degli accordi commerciali che vi erano in essere in quel periodo tra le due società e la Bunnell Co.

Questo modello di camelback è poco comune tant'è che sono riuscito a trovare alcune info solo nel sito di Paul N6EV .





This particular camelback key had "Arch" as nickname  due to the innovative arch-shaped frame, also has the base in hard ruber, one of the first used in telegraphy for this kind of keys.

A twin key like this was produced by the company Partrick & Carter, probably due to the commercial agreements that were in place at that time between the two companies and Bunnell Co.

This camelback model is not so common infact I was able to find some info only on the Paul N6EV site.



29 Jannuary 2021

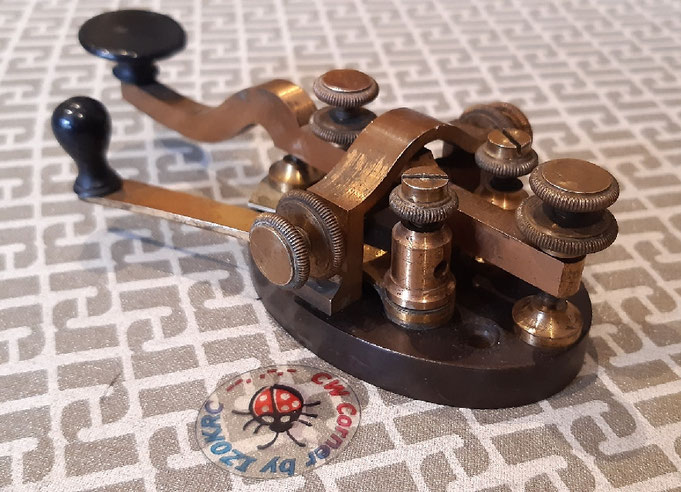

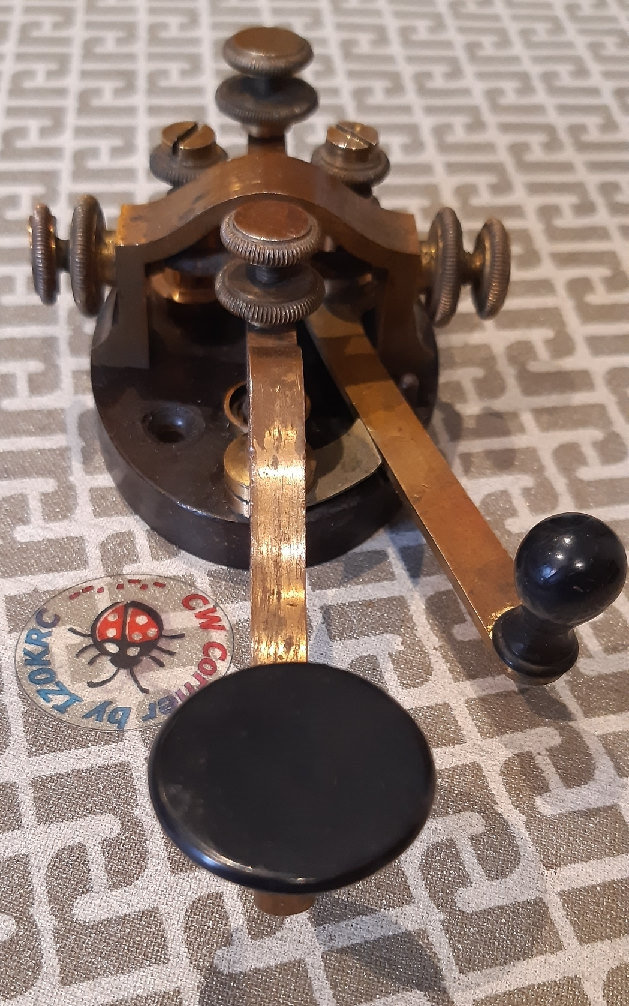

Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key
Tillotson Arch camelback key









Coming soon



Tillotson / E.S. GREELEY & Co. "Victor key"

TK.US.007



La chiave progettata da Tillotson "Victor" evidenziata in questa pagina è un esempio di uno degli altri tentativi di progettazione per aggirare i brevetti deposistati. Come si nota, il sistema per lo snodo del braccio primcipale utilizza un sistema denminato a coltello che forma una cerniera tra i due montanti, la molla di contrasto contribuisce ad un duplice effetto, regolare la forza di trasmissione e mantenere nel contempo vicnolato il braccio principale al main frame.

Il sistema è comunemente denominato di " Victor" ed è basato su un brevetto di E.M.Hamilton del 1882.

Questo sistema è utilizzato anche da due chavi Belghe, non è quindi noto se il disegno originale sia di Hamilton o di un designer europeo?



Dopo la morte di Tillotson nel 1885, l'azienda si riorganizzò come "E.S. Greeley & Co'. , successivamente le scritte divetano “E.S. Greeley & Co. successori di L.G. Tillotson & Co”, che denota una data leggermente successiva, intorno al 1887.















Marconi Wireless Co. of Amercia  - Spark key model CM 425.

TK.US.008



Questo particolare tasto appartiene alla serie dei tasti cosi detti Spark, per via dei primi utilizzi nei sistemi wireless ad arco poulsen o similari, dove in gioco vi erano correnti elevati e moti amperè da gestire.

Questo tasto era garantito per 500 cicli di trasmissione.

E poi ? Come vedrete nelle foto più avanti, si cambiavano le pasticche di contatto, una semplice manutenzione e si ricominciava il ciclo di trasmissione.

Per diminuire questi problemi legati al consumo dei contatti dovuti alla creazione di questi potenti archi voltaici, sono stati in seguito introdotti i primi sistemi di "spingimento" o riduzione delle scintille che avvenivano durante la manipolazione.

Il tasto è stato prodotto dalla Marconi Co. of America con sede in Aldene (NJ), con una una moltitudine di varianti, a seguito di commissioni specifiche richieste dalla Marina degli Stati Uniti, per l'utilizzo nelle stazioni costiere, nelle corazzate o sui cacciatorpediniere ecc.. Varianti sempre legate al sistema di trasmissione in uso.

Il modello sotto esposto era progettato per una corrente continua di 250V. 10Amp.





This particular key belongs to the series of so-called Spark keys, due to the first uses in wireless arc poulsen systems or similar, where the high currents and amperè motions to manage.

This key was guaranteed for 500 transmission cycles.

And then ?

As you will see in the photos below, the contact pads were changed, a simple maintenance and the transmission cycle was restarted again.

In order to reduce these problems related to the consumption of contacts due to the creation of these powerful electric arcs, the first systems of "pushing" or reducing the sparks that occurred during handling were subsequently introduced.

The key was manufactured by the Marconi Co. of America based in Aldene (NJ), with a multitude of variations, following specific commissions requested by the United States Navy, for use in coastal stations, in battleships or on destroyers ship etc .. Variants always linked to the transmission system in use.

The model shown below was designed for a direct current of 250V. 10Amp.



31 January 2021





Marconi Spark key CM-425. Pastiglie viste durante la pulizia.
Marconi Spark key CM-425. Pastiglie viste durante la pulizia.
Marconi Spark key CM-425. Pastiglia viste durante lo somontaggio per simulare la sostituzione.e.izia.
Marconi Spark key CM-425. Pastiglia viste durante lo somontaggio per simulare la sostituzione.e.izia.
Marconi Spark key CM-425. Pastiglia smontata, sotto ha la filettatura per ancorarsi al piatto di base.
Marconi Spark key CM-425. Pastiglia smontata, sotto ha la filettatura per ancorarsi al piatto di base.

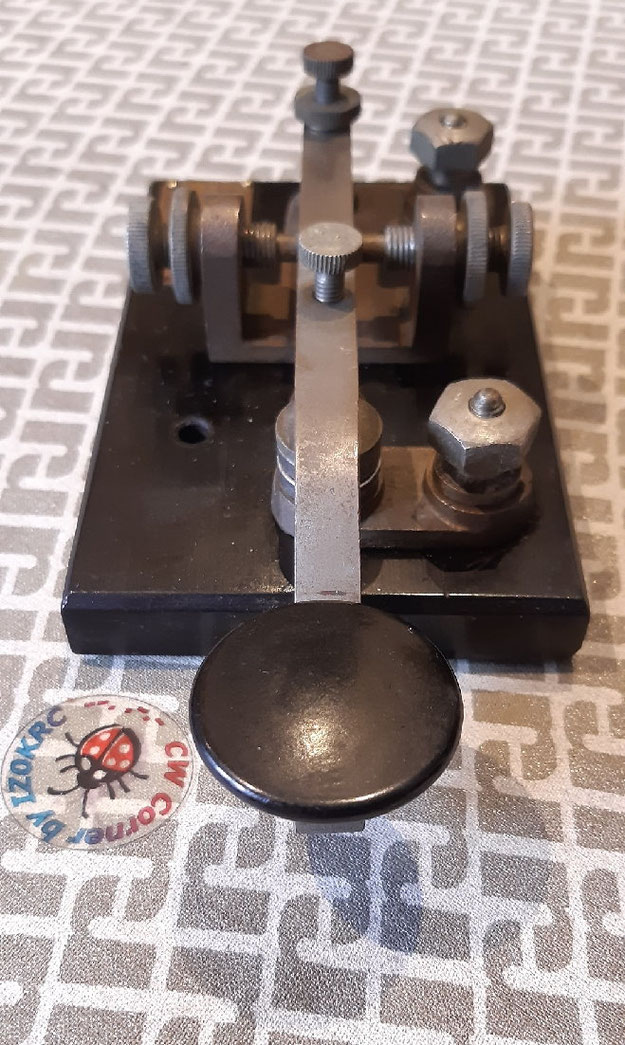

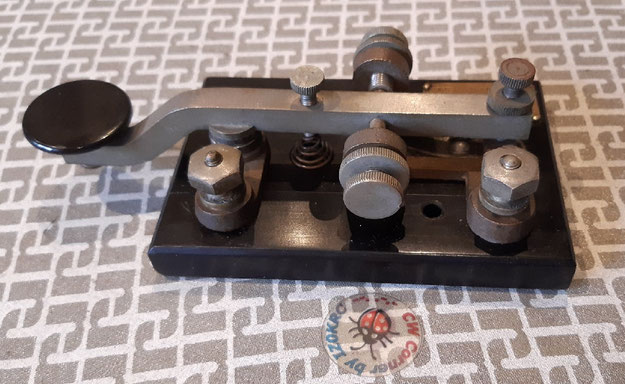

Marconi Spark key CM-425.
Marconi Spark key CM-425.
Marconi Spark key CM-425.
Marconi Spark key CM-425.
Marconi Spark key CM-425.
Marconi Spark key CM-425.

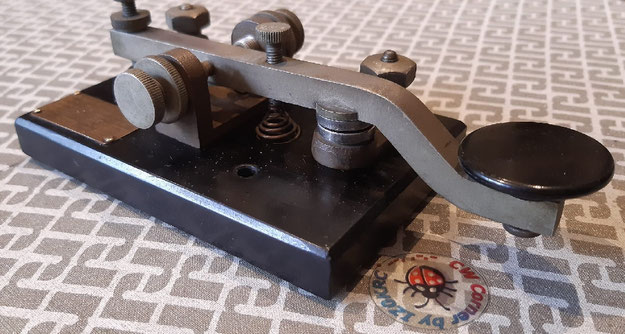

Marconi Spark key CM-425.  Particolare sui grandi contatti.
Marconi Spark key CM-425. Particolare sui grandi contatti.

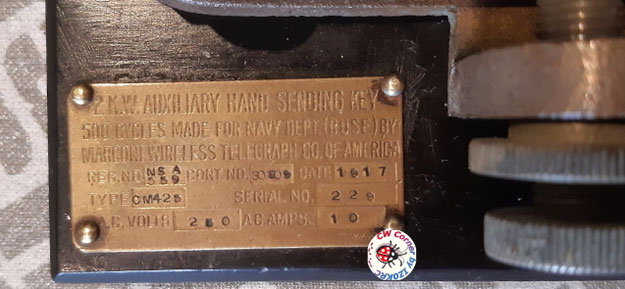

Marconi Spark key CM-425.  Particolare della targa con le specifiche di utilizzo.
Marconi Spark key CM-425. Particolare della targa con le specifiche di utilizzo.







Coming soon



BUNNELL strap key

PK.US.001



Bunnell strap key...











Early  mecchanical sound morse key - USA.

LK.US.001



Questo tasto didattico veniva utilizzato agli albori della telegrafia per l'apprendimento del codice Morse.

Il principio di funzionamento è molto semplice,la leva di comando principale muovendosi dava impulso ad una seconda leva che battendo riproduceva l'emissione sonora di un comune Sounder utilizzato negli uffici postali o ferroviari.

Sistema di decodifica del codice morse per mezzo del suono, utilizzato dai cosi detti "orecchisiti", comune nel Nord America.

L'espediente meccanico sostituiva in modo semplice l'uso della corrente elettrica per dare il movimento alle parti del sounder. Veniva cosi evitato l'utilizzare delle ingombranti, quanto costose celle dell'epoca.

Rispetto al modello in foto, vi era un modello ancora più primordiale composto da una unica leva, mentre.







This learning key was used in the early time of telegraphy to learning Morse code.

The operating principle is very simple, the main lever moves impulse to a second lever that beating reproduces the sound emission like a common Sounder used in post offices or railways .

Morse code decoding system by sound, used by the so-called "ears", common in North America.

The mechanical gimmick  substitude the electric current to move the parts of the sounder. Thus to evitate the bulky, as expensive cells of the time .

Compared to the model in the pictures, there was an even more primordial model Learning key, it consisting of a single lever while.



30 September 2017.





Early learning morse key


Early learning morse key

Early learning morse key
Early learning morse key
Early learning morse key
Il contenuto YouTube non può essere visualizzato a causa delle impostazioni dei cookie. Per acconsentire al caricamento e alla visualizzazione del contenuto YouTube devi accettare i cookie funzionali di YouTube dal relativo banner.

video with the operating set
